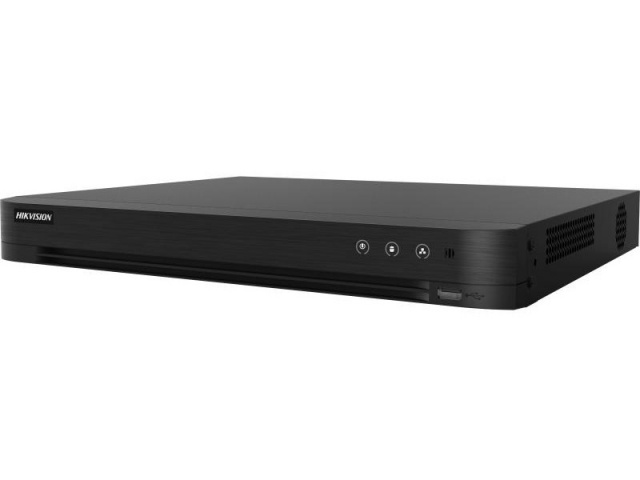

DVR 16 CANALES HIKVISION 1080P LITE

Recording

Compresión de vídeo: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolución de codificación: 1080p lite/720p/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:



For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)

For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream:

For 1080p and 720p stream access: CIF/QVGA@15fps

For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)



Vídeo bitrate: 32 Kbps to 4 Mbps

Doble flujo: Support

Stream Type: Video, Video & Audio

Compresión de audio: G.711u

Audio Bitrate: 64 Kbps



Video and Audio

Entrada de vídeo IP:



2-ch (up to 18-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Entrada de video analógico: 16-ch



BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection

HDTVI Input: 1080p25, 1080p30, 720p25, 720p30

AHD Input: 1080p25, 1080p30, 720p25, 720p30

HDCVI Input: 1080p25, 1080p30, 720p25, 720p30

CVBS Input: PAL/NTSC

HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Entrada de Audio: 1-ch RCA (2.0 Vp-p, 1 KO), and 16-ch via coaxial cable

Salida de audio: 1-ch, RCA (Linear, 1 KO)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input)

Reproducción síncrona: 16-ch



Red

Conexión remota: 128

Protocolo de red: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Interfaz de red: 1, RJ45 10M/100M self-adaptive Ethernet interface



Auxiliary Interface

SATA: 1, SATA interface

Capacidad: Up to 10 TB capacity for each disk

Interfaz USB: 2 × USB 2.0



General

Fuente de alimentación: 12 VDC, 1.6 A

Consumo: = 10 W

Temperatura de trabajo: -10 °C to 55 °C (14 °F to 131 °F)

Condiciones de Humedad: 10% to 90%

Dimensión (W × D × H): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

= 1.1 kg (2.4 lb)
